Square Pipe Cold Roll Forming Machines Color Steel Galvanized Downwater Rain Gutter

Brand Name : XINGHE

Model Number : XH828

Certification : CE,ISO,TUV,BV

Place of Origin : Botou,Hebei Province

MOQ : 1 Set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30 SETS / MONTH

Delivery Time : 20 Working days

Packaging Details : Naked and fixed into container

Condition : New

Type : Tile Forming Machine

Production Capacity : 10-12m/min

Power(W) : 3+3kw

Voltage : 380v,50hz,3 phrases

Dimension(L*W*D) : 7400*1200*1500mm

Weight : 3.2T

Warranty : One year guarantee

After-sales Service : Engineers available to service

Machine color : Any color as you like

Control system : Automatic PLC control

ODM : Available

Contact Now

Color Steel Galvanized Downwater Rain Gutter Square Pipe Roll Forming Machine

Processing technique
Processes: manual decoiler --- feeding table --- Roll forming machine --- PLC system --- Hydraulic system --- Post cut

♦Main Parameters of water gutter cold roll forming equipment:

No.	main parameter of gutter roll forming machine
1	Suitable to process	Color steel plate, galvanized sheet, aluminum coils and etc.
2	Width of the feeding material	According to the profile
3	Rollers station	18 rows
4	Thickness of feeding material	0.3-0.8mm
5	Power	4+4kw
6	Size	85008001500mm
7	Productivity	8-12m/min
8	Diameter of shaft	52mm
9	Weight	About 4.8 T
10	Voltage	380V 50Hz 3phases
11	Rolling material	Carbon Steel 45#
12	Material of the cutting plate	Cr12
13	Wall thickness of main forming machine	16mm steel plate
14	Main structure of the machine	300 H steel
Custom according to customer requirements or drawings

♦The advantage of seamless rain gutter cold roll forming machine

seamless rain gutter cold roll forming machine can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.

seamless rain gutter cold roll forming machine is composed of uncoiler, the feed leading table, the main machine, the formation cutting device, hydraulic system, control system and the product bracket.

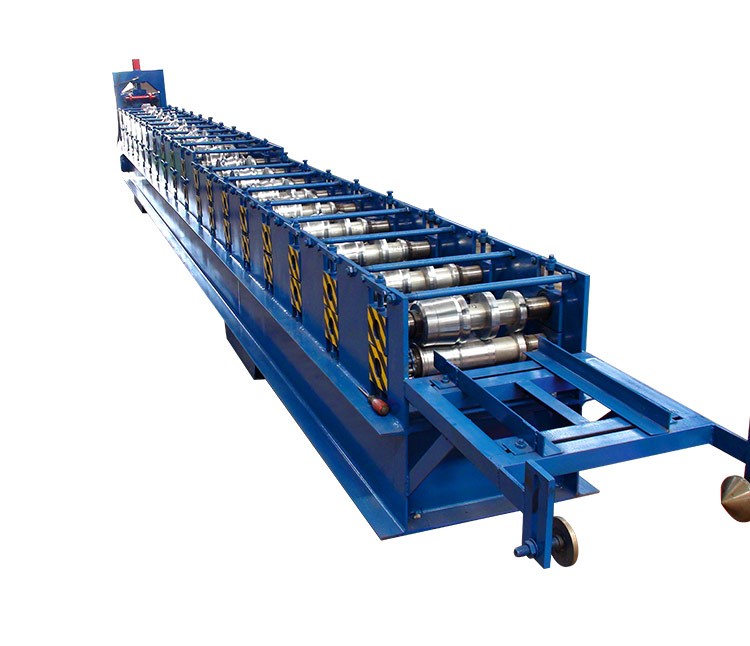

Product Pictures

Square Pipe Cold Roll Forming Machines Color Steel Galvanized Downwater Rain Gutter

Production Process

Square Pipe Cold Roll Forming Machines Color Steel Galvanized Downwater Rain Gutter

Packaging & Shipping

Square Pipe Cold Roll Forming Machines Color Steel Galvanized Downwater Rain Gutter

Packaging Details:	Main machine is nude, the computer control box is packed with wooden frame.
	Main machine is nude in the container, the computer control box is packed with wooden packaging.
Delivery Detail:	20 days

Packaging Details:

Main machine is nude, the computer control box is packed with wooden frame.

Main machine is nude in the container, the computer control box is

packed with wooden packaging.

Delivery Detail:

20 days
